4. Using the NexCruise Steering mount dial

4. Using the NexCruise Steering mount dial

πŸ“˜Dial keys assignment


Dial key
Button Location
Function
Cruise control
Centre Button
Cruise on
Cruise off
Cruise resume(Hold 2 sec)
Speed limit
Left side button
Speed limit on
speed limit off
Eco mode
Top button
Eco mode on
City mode
Right side button
City mode on
Sports mode
Bottom button
Sports mode on
Dial ring
Clockwise side
increase the cruising speed

Anti-clockwise side
Decrease the cruising speed


Info
Cruise, Eco, and City modes can be selected among each other, for example, you want to switch from Sport mode to Eco mode , then just press Eco mode button.

Turn On Your Car

Indications

State LED
Reason
Remarks
πŸ”΅blue
The car ignition is on, but it's not moving.

Car speed from 0 to 5 kmph.

The car is running, but the cruise control is not detecting the speed.

Nexcruise is funcationing ok.

If you are facing this issue, please contact technical support for help.
βšͺWhiteWhen the speed of the car will be 5 Kmph or more.
this means that now we can use the feature of  Nexcruise.But Cruise cannot be engaged.
πŸ”΄RedWhen the NexCruise is deactivated (bypass mode).

If the hardware is not installed properly.

if some hardware is faulty.
If you are facing this issue, please contact technical support for help.

Info
Click on the link provided to read information related to bypass"Bypass the Nexcruise"

πŸ”΅Blue  (State LED)
By turning on the car's ignition, we will see that the blue light in the State LED bar comes on, indicating the current state and mode.

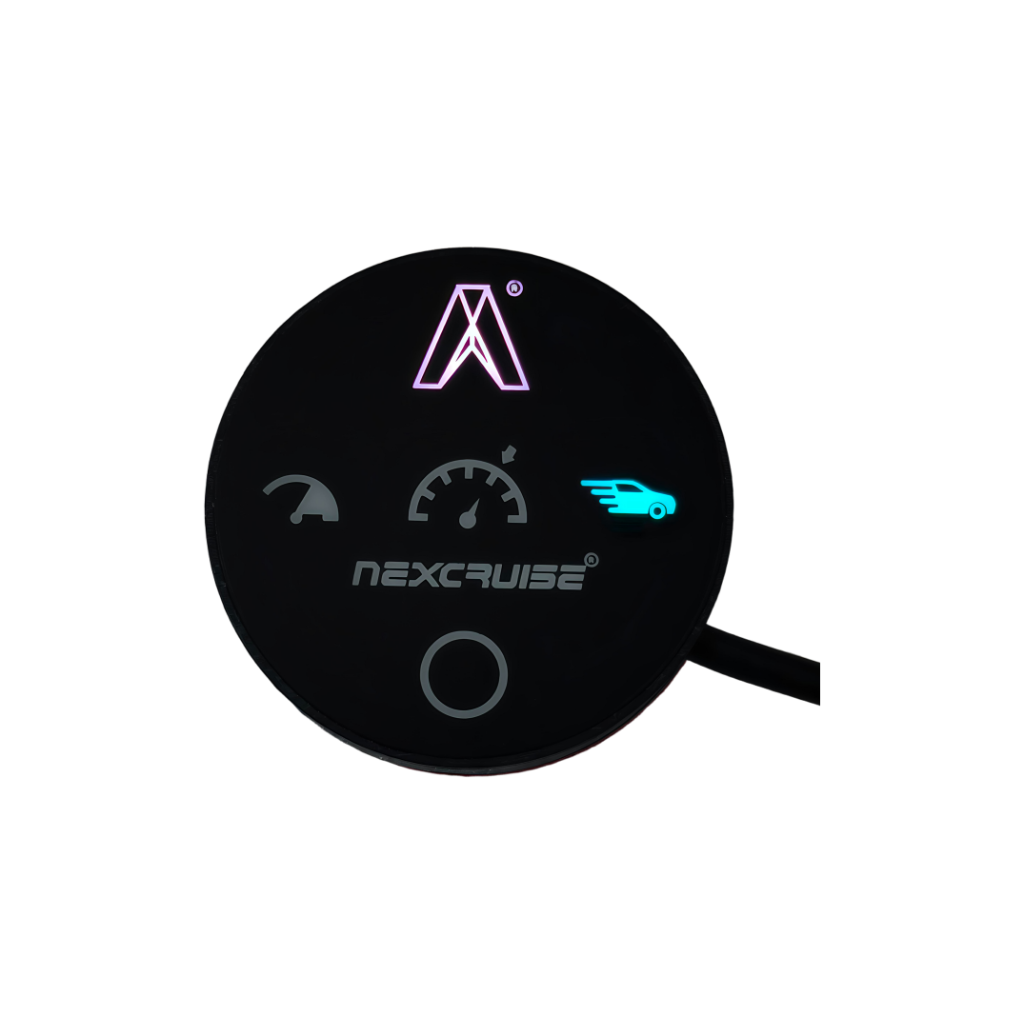

βšͺ White (State LED)
When the speed of the car will be 5 Kmph or more, then the state light will change from blue to white color (this means that now we can use the feature of  Nexcruise).

Use Cruise Control

Indications

Cruise LEDReason
Remarks
Green on
The cruise will be engaged.

Green off
The cruise will be disengaged.
the cruise is to be disengaged, then press the center button of the dial 0r the Brake pedal.

Engaging Cruise

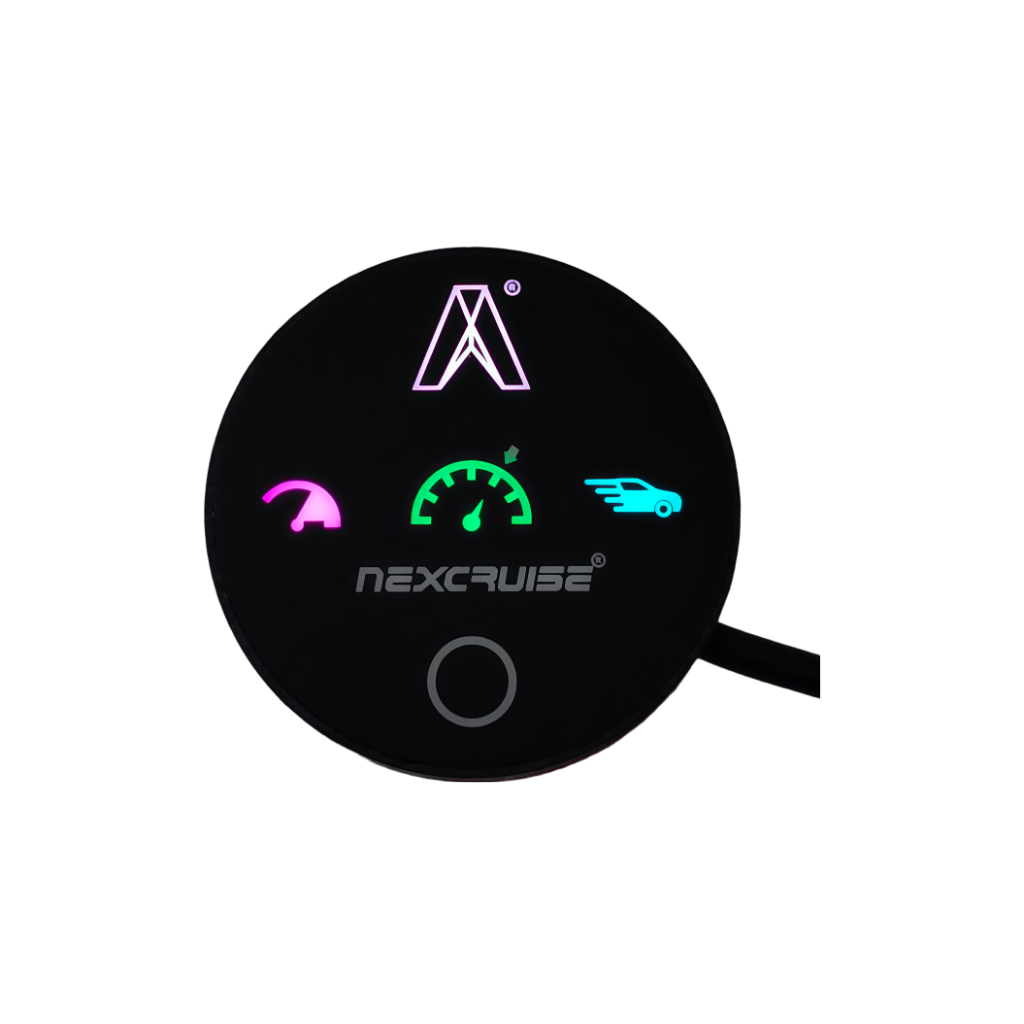

🟒 Green  (Cruise  LED)
Reach the speed you want to maintain. Press the center button on the dial. The Cruise LED will turn Green, and cruise control will be engaged

Disengaging Cruise

🟒➑️⚫
When the cruise is to be disengaged, then press the center button of the dial 0r Brake pedal, then the cruise will be disengaged and the green light of the cruise will be off in the Cruise LED.

Resume Cruise Speed

πŸ” Hold Center Button (2 sec)
If we want to resume cruise at the same speed at which we were before, then by long press (2 sec) on the center button of the dial, we can resume cruise at the previous speed. (Green light of Cruise turns on in Cruise LED

InfoNote:Cruise cannot be engaged below 15 km/h.

Dial driving

Increase Cruise Speed

πŸ”„ Rotate Dial Clockwise
To increase the cruising speed, then the rotary part of the dial is rotated in the clockwise direction, then the cruising speed is increased. (Cruise should be engaged while increasing the cruising speed).

Decrease Cruise Speed

πŸ”„ Rotate Dial Anti-Clockwise
When we want to decrease the cruising speed, then the rotary part of the dial is rotated in the anti-clockwise direction. (Cruise should be engaged while decreasing the cruising speed).

Use Speed Limit

How to Set Speed Limit in the App

  1. Open the Car.OS app.
  2. Connect to Nexcruise.
  3. Go to Configure> Speed Limit
  4. Set Your Desired Maximum Speed.

Indications

SLIMIT LED
Reason
🟣Magenta on
The Speed limit will be engaged.
⚫Magenta off
The Speed limit will be disengaged.

Engage Speed Limit

🟣 Magenta  (SLimit LED)
To engage the Speed limit feature, press the Speed limit button on the dial, as soon as the Speed limit button is pressed, the Magenta color light of the speed limit turns on in the SLIMIT LED.(We can set the speed limit in the CAR.OS app)

Disengage Speed Limit

🟣➑️⚫
To disengage the Speed limit feature, press the Speed limit button on the dial. As soon as the speed limit button is pressed, the speed limit's magenta color light turns off in the SLIMIT LED.

Use Energy modes

indications

Mode LED
Reason
🟑Yellow
Eco mode will be engaged.
πŸ”΅BlueCity mode will be engaged.
🟠OrangeSports mode will be engaged.

Eco Mode

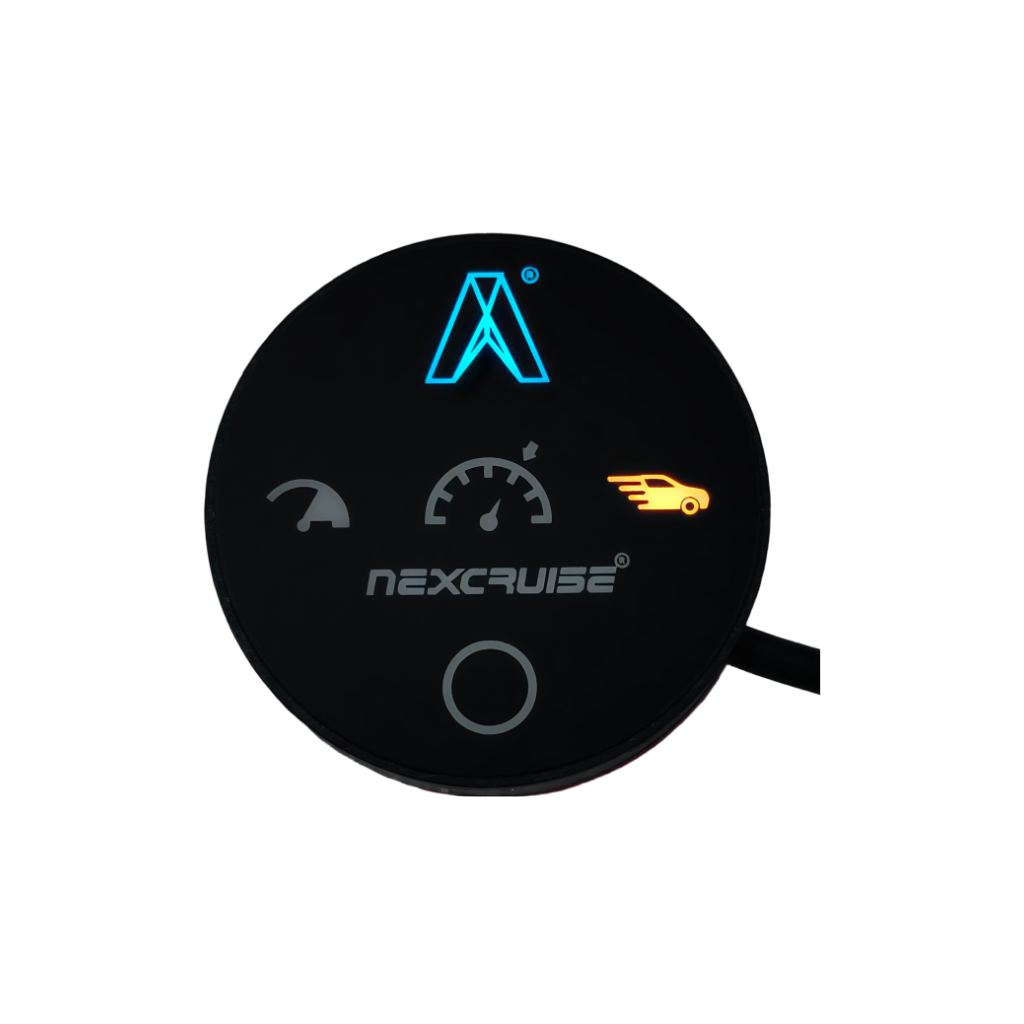

🟑 Yellow Light ( Mode LED)
To engage Eco mode, we have to click on the Eco mode button of the dial, as soon as we click on the Eco mode button, the yellow light  will come on in the Mode LED.

City Mode

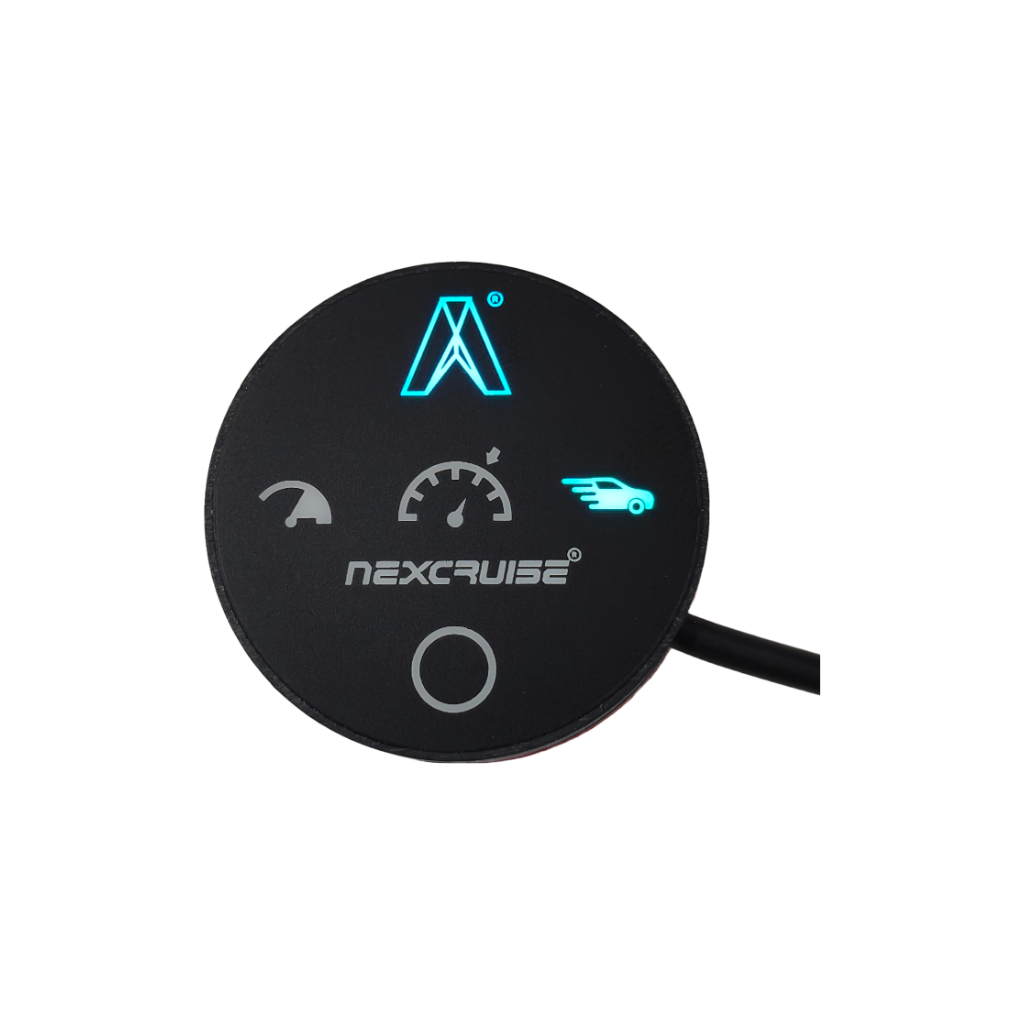

πŸ”΅ Blue Light ( Mode LED)
To engage City mode, we have to click on the City mode button of the dial, as soon as we click on the City mode button, the Blue light will come on in the Mode LED .

Sports Mode

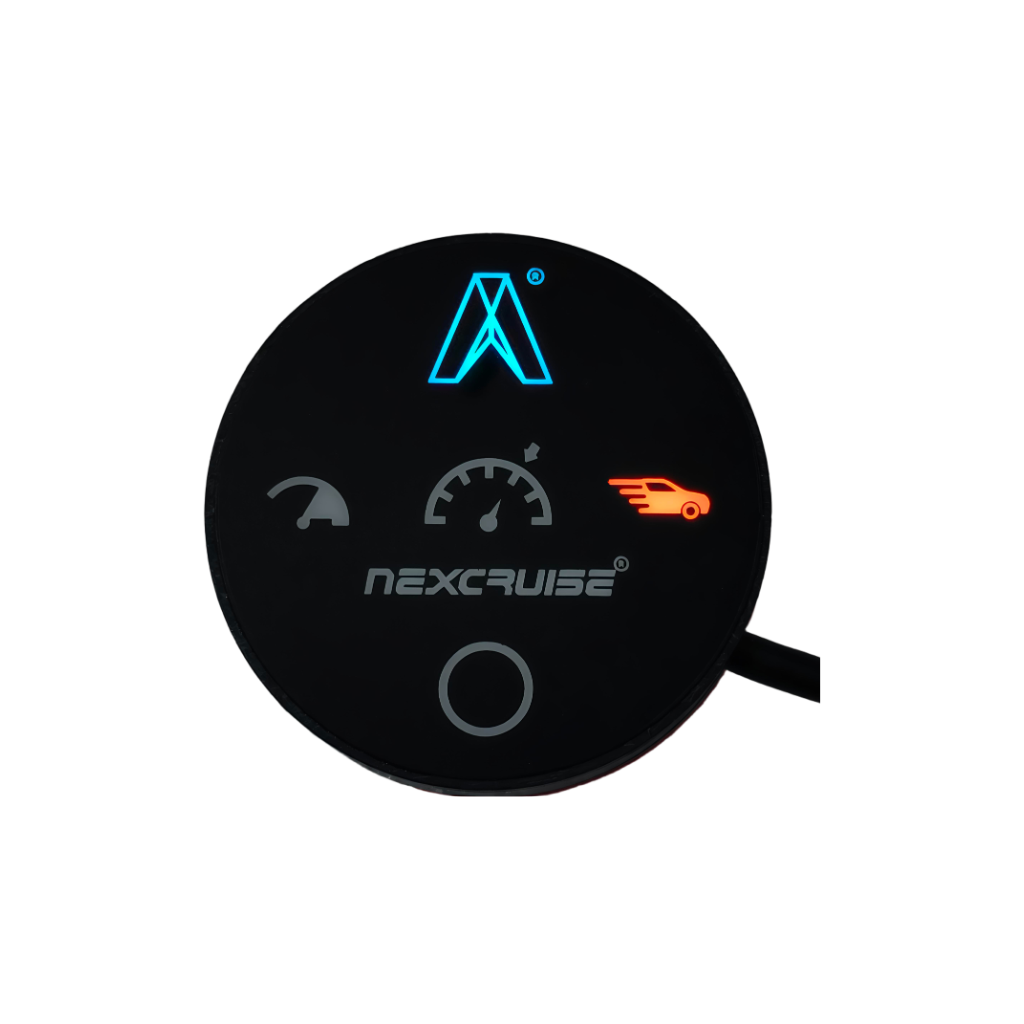

🟠 Orange ( Mode LED)
To engage Sports mode, we have to click on the Sports mode button of the dial, as soon as we click on the Sports mode button, the Orange light  will come on in the Mode LED .

Info
This is an article in a series with the Topic "Introduction to NexCruise".
