4. How to do OTA update.

4. How to do OTA update.

Steps for OTA update

To update the NexCruise via OTA, follow these steps:
  1. Connect the NexCruise app to a device
  2. Register or login
  3. Perform Over the air update

Connect the NexCruise app to the device

  1. Turn on the Bluetooth of the mobile

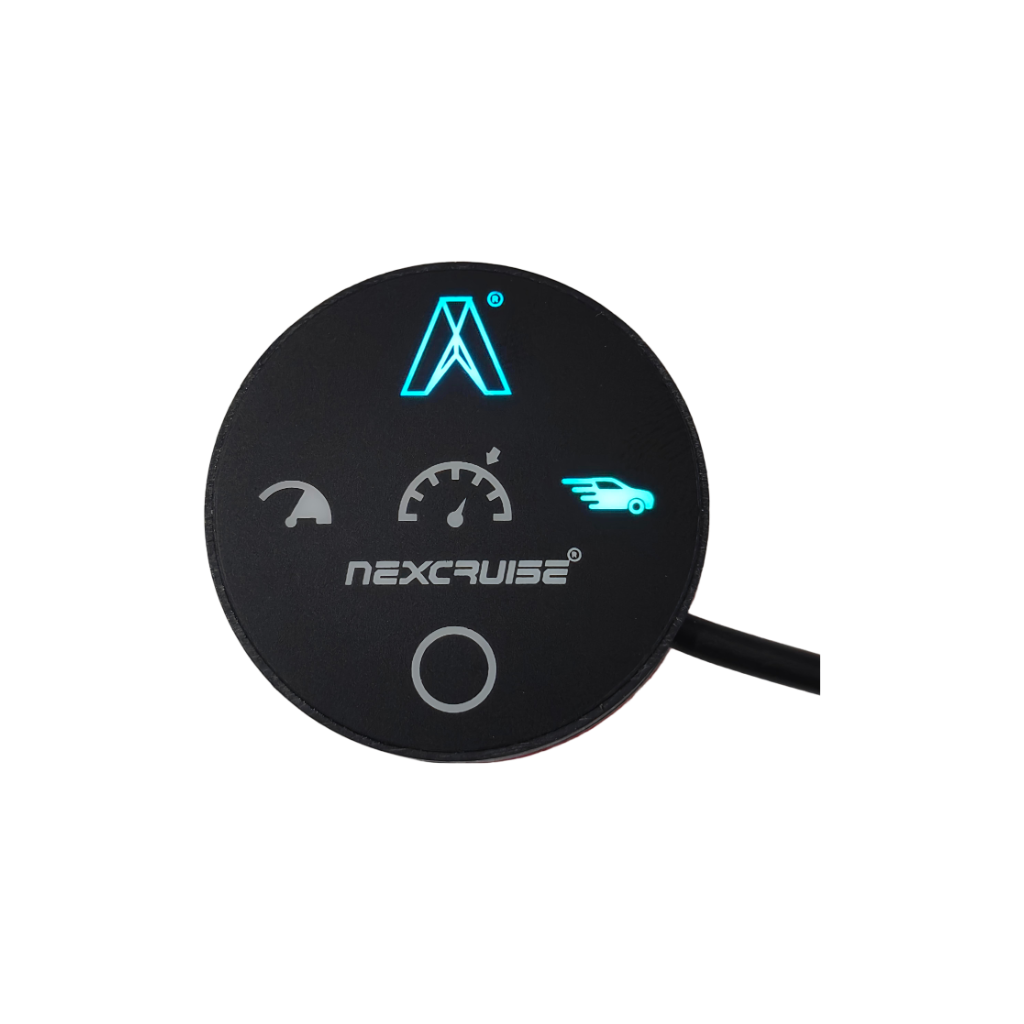

  2. Turn on the car in ACCESSORY mode (don't turn on the engine), and make sure the STATE LED on the NexCruise light-bar is glowing.

  1. Start the NexCruise app and press CONNECT button

  1. After connecting, the either the login screen, or the dashboard will appear:
Login screen:


Dashboard:

This tutorial assumes that you have already registered your device. If not, follow this <link>

Next, you need to provide the wifi to NexCruise device. You can use your home wifi or your mobile hotspot. Once you are sure that a wifi network is present, trigger the OTA via these steps:

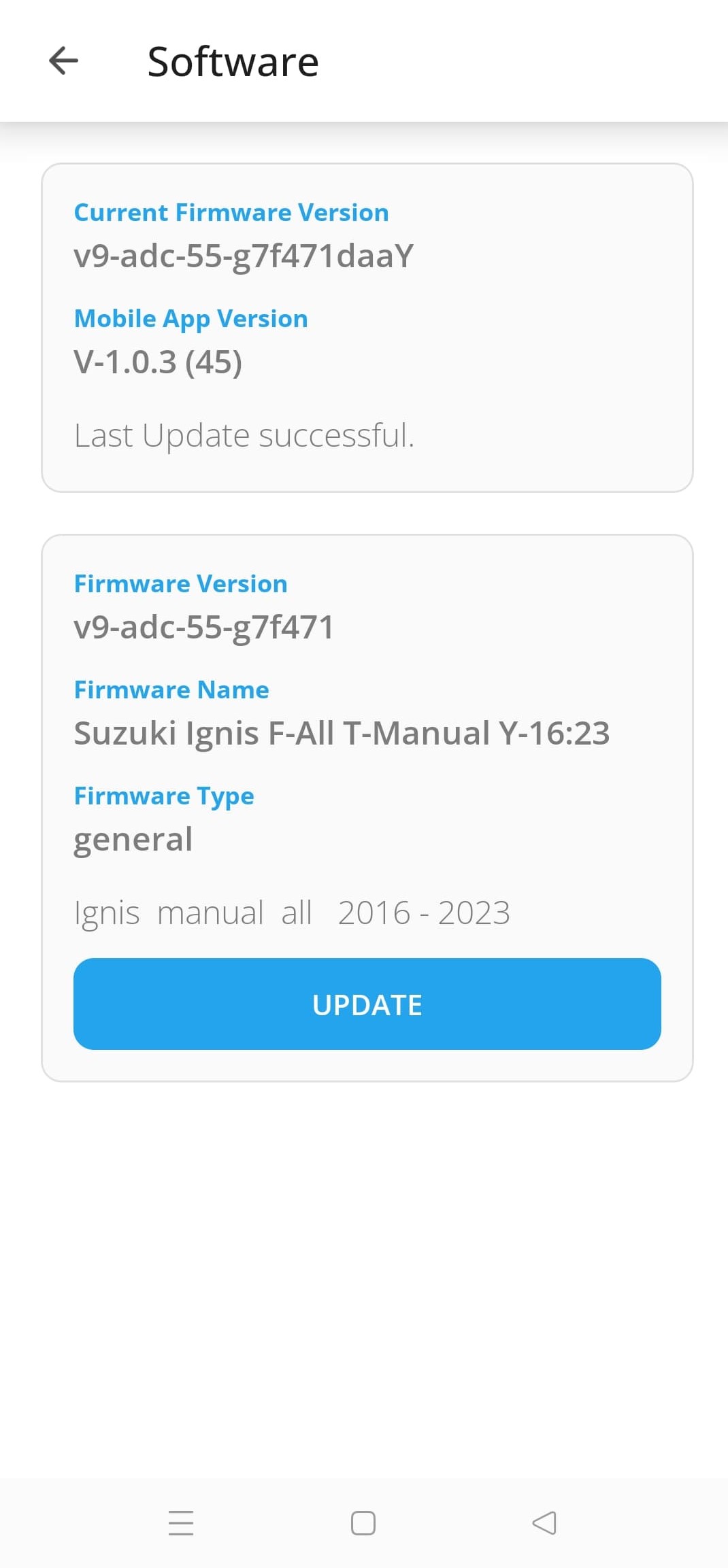

Start the OTA update





Refer below to use your mobile hotspot:

Configuring the hotspot

Android

Here is a screenshot of an Android mobile phone:
Android configuration for NexCruise

iPhone

For iPhone, change the name in Settings -> General -> About, like this:
Change "Name" to nexcruise in settings -> General -> About
Put password here:


for iPhone version 12 or more, you may need to enable "Maximize compatibility" in hotspot settings.

Video demonstration


Click on the link provided to watch related videos:- https://youtu.be/1U0llUfNtsE


This is an article in a series with the Topic "Operations in Nexcruise".
 Previous Article || Next Topic "Troubleshooting"
